GHP™ 20 Marine Autopilot System with SmartPump

단종

Part Number K10-00163-10

GBS 온라인샵

제품 특성
제품 사양
내용물
업데이트
액세서리
호환 기기

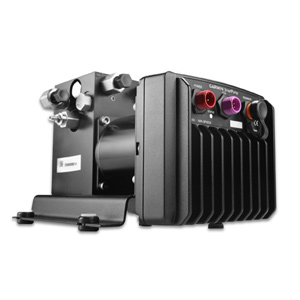

One compact, brushless SmartPump fits most hydraulically steered boating applications
Delivers excellent thermal performance, high reliability, and low power consumption
Patented Shadow Drive™ technology keeps you in control even when relying upon autopilot
Intelligent Rudder Rate Technology (IRRT) slows rudder rate at high speeds, quickens rate at low speeds
Supports NMEA 0183 and NMEA 2000® certified

The GHP 20 Marine Autopilot with SmartPump Technology is a tremendous advancement in hydraulic steering systems. One pump size handles most boat sizes and applications.

Experience the One Pump Solution

The GHP 20 with SmartPump puts an end to guessing which pump size will work with your particular boat. One SmartPump works for most boats. You know you have the right pump for your boat for optimum control and confidence. Plus, you get complete control in a smaller size with better thermal performance, higher reliability and lower power consumption. It also includes color-coded connectors to make it very easy to install. Pretty smart.

Limit the Maximum Flow Rate

The GHP 20 with SmartPump automatically adjusts the maximum flow rate for a particular boat from 0 to 2.4 L per minute. Because the GHP 20 with SmartPump uses a brushless motor, there is no direct electrical connection between the drive circuit and the rotor. This provides for increased reliability, longer pump life, reduced power consumption, quiet operation, a smaller package, improved thermal performance and higher efficiency.

Eliminate Risk of Rudder “Hard Over”

The GHP 20 with SmartPump is a complete autopilot package. SmartPump is one integrated unit comprised of a motor drive circuit with the pump in a single assembly. Equipped with Intelligent Rudder Rate Technology (IRRT), it actually slows the rudder rate when the vessel is at high speeds and speeds up rudder rate when the vessel is at lower speeds to provide optimal performance and safety in all conditions. The brushless motor drive eliminates the risk of rudder hard over due to hardware or software failures.

Enjoy a Longer Lasting System

Boating environments are harsh, especially on saltwater. So the Garmin SmartPump is protected from the elements. SmartPump is engineered from corrosion-resistant components, including anodized aluminum and nickel-plated steel parts.

Experience Advanced Autopilot Technology

With a GHP 20 with SmartPump aboard your boat, you no longer need to be tied to your helm. In addition to holding its course in virtually all weather and wind conditions, the system can smoothly perform a variety of pre-programmed trolling and search procedures. Plus, with a compatible Garmin networked chartplotter and BlueChart® g2 Vision® charts (sold separately), you gain optional features like Auto Guidance, which automatically steers GPS routes.

Stay in Control with Shadow Drive™ Technology

The GHP 20 with SmartPump features patented Shadow Drive technology. This gives you the security of knowing you maintain control even when the autopilot is engaged. The Shadow Drive system automatically disengages the autopilot if the helm is turned, giving you the freedom to maneuver the boat. The autopilot automatically re-engages when you hold a steady course.

Connect to Networked Devices

The GHP 20 Autopilot with SmartPump for hydraulically steered boats is operated using up to 3 GHC™ helm control units. The GHC communicates with the autopilot system via your NMEA 2000® network, so autopilot heading data can be shared easily with other devices. This enables MARPA and chart overlay when connected to a Garmin chartplotter. An optional handheld wireless remote control is also available; however, for the highest level of convenience, control the GHC using quatix™, the world’s first marine GPS navigation watch featuring ANT® wireless technology.

Add Even More Peace of Mind

Add an optional GRF™ 10 rudder feedback sensor and you can further enhance the performance of your GHP 20 Autopilot with SmartPump.

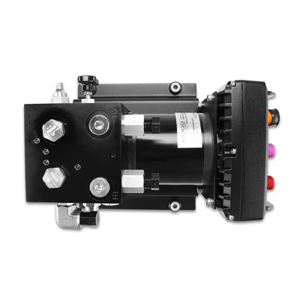

SmartPump Specifications

Dimensions (H x W x D): 7 3/4" x 7 1/2" x 9 5/8" (197 mm x 190 mm x 244 mm)
Weight: 16.5 lbs (7.5 kg)
Temperature range: From 5°F to 131°F (from -15°C to 55°C)
Material: Electronics Control Unit (ECU) - fully gasketed, aluminum alloy; bracket - carbon steel; manifold - aluminum alloy; motor - aluminum alloy
Power cable length: 9 ft (2.7 m)
Power input: 11.5-30 Vdc
Fuse: 40 A, blade-type
Main power usage: standby - less than 1 A; engaged - 5-10 A; peak - 34 A
Flow rate: Configurable from 0 to 2.4 L per minute
Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in

CCU Specifications

Dimensions: 3 19/32" diameter (91.4 mm)
Weight: 5.6 oz (159 g)
Temperature range: From 5°F to 131°F (from -15°C to 55°C)
Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
CCU cable length: 9.5 ft (3 m)
NMEA 2000 power input: 9-16 V
NMEA 2000 LEN: 3 (150 mA)

GHC 20 Specifications

Buzzer/Alarm Specifications

Dimensions (L × Diameter): 29/32" × 1.0" (23 mm × 25 mm)
Weight: 2.4 oz (68 g)
Temperature range: from 5°F to 131°F (from -15°C to 55°C)
Cable length: 10 ft (3.0 m)

GHP SmartPump

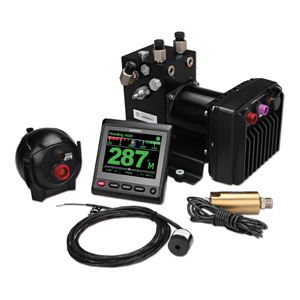

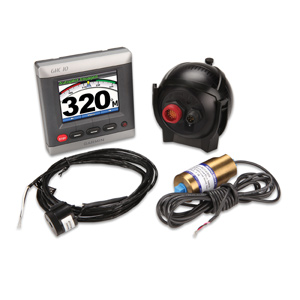

Corepack, GHP 20 for Hydraulic Steering
- GHC™ helm control unit
- Course Computer Unit (CCU)
- CCU cable
- Shadow drive
- Buzzer
- 2 NMEA 2000® drop cables (2 m)
- NMEA 2000 power cable
- 3 NMEA 2000 T-connectors
- Male and female terminators
- Documentation
