Marine Heading Sensor

단종

Part Number 010-11417-00

GBS 온라인샵

제품 특성
제품 사양
내용물
업데이트
액세서리
호환 기기

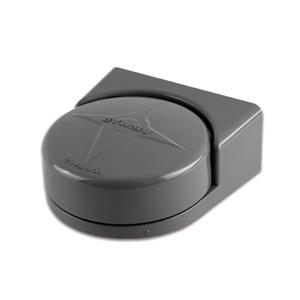

When interfacing this 3-axis compass heading sensor to our marine lineup of MFDs and radars, mariners can expect unparalleled radar overlay performance and accuracy along with excellent MARPA capabilities.

This heading sensor (based on Airmar H2183) uses a rate gyro, so it can maintain an exceptional 2 degree heading accuracy under heavy dynamic conditions, with up to 30 degrees of pitch and roll. In addition, it supports either NMEA 0183 or NMEA 2000® data output to fit any installation.

Installation is a snap thanks to the heading sensor’s innovative design, allowing it to mount to any angled bulkhead. Mariners can expect this heading sensor to provide trouble-free service in the harshest conditions and will learn to appreciate its reliability and excellent performance.

* Note: NMEA 0183 and NMEA 2000 cables sold separately

관련 홈페이지

Dimensions (HxLxD): 2" (5.08 cm) x 4.4" (11.18 cm) x 4.5" (11.43 cm)
Default heading output: 10 Hz for both NMEA 0183 and NMEA 2000 (NMEA 2000 can be output up to 20 Hz)
Waterproof housing: IPX6
Operating voltage: 9 VDC to 16 VDC
