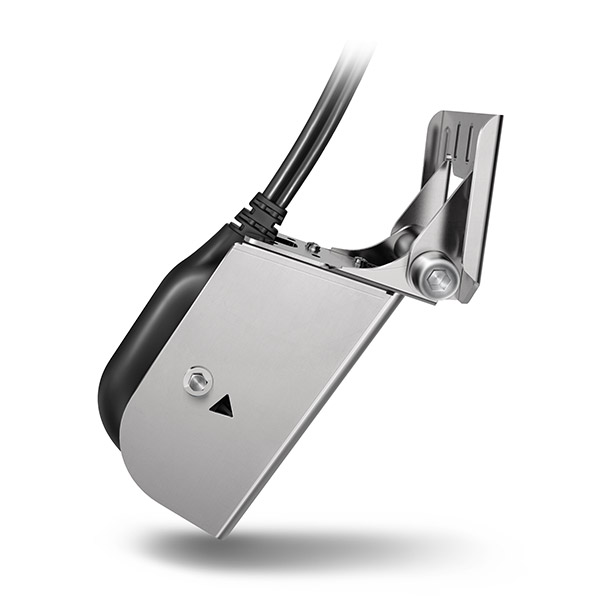

Panoptix™ PS21-TM Forward Transom Mount Transducer

단종

Panoptix™ PS21-TM Forward Transom Mount Transducer

Part Number 010-01588-01

GBS 온라인샵

제품 특성
제품 사양
내용물
업데이트
액세서리
호환 기기

See Submerged Objects Ahead of Your Boat

Adds FrontVü and LiveVü Forward — 2 of the most compelling views of Panoptix, the most unique and innovative sonar on the water
FrontVü sonar shows submerged obstructions as you approach them within a 300-foot forward range; helps you avoid collisions¹
LiveVü Forward sonar gives you the unique ability to see fish - even divers - swimming live under and ahead of your boat with a 100-foot forward range in real time
Both views work when boat is moving or stationary
Includes transducer transom mounting kit

It’s very unnerving, to say the least, when cruising at up to 8 knots in unfamiliar waters, and an obstacle or sand bar suddenly appears. So we designed Panoptix PS21-TM with FrontVü sonar to give boaters enhanced situational awareness.¹ FrontVü sonar shows approaching obstacles, sandbars and other hard obstructions to give you time to respond and avoid a collision or running aground. It’s a great way to protect your boat and your passengers.

Panoptix PS21-TM also features LiveVü Forward sonar to give you the unique ability to see real-time sonar views under and ahead of your boat with a 100-foot forward range. You can actually see fish swimming. You can also keep track of the whereabouts of swimmers and divers, because LiveVü Forward works even when your boat is stationary.

Easy to use with compatible Garmin echoMAP™ CHIRP 7- and 9-inch models, GPSMAP® 7400/7600 series, GPSMAP 8000/8500/8400/8600 Glass Helm series and GPSMAP 721/741/820/840/1020/1040 series chartplotters. Includes transducer transom mounting kit.

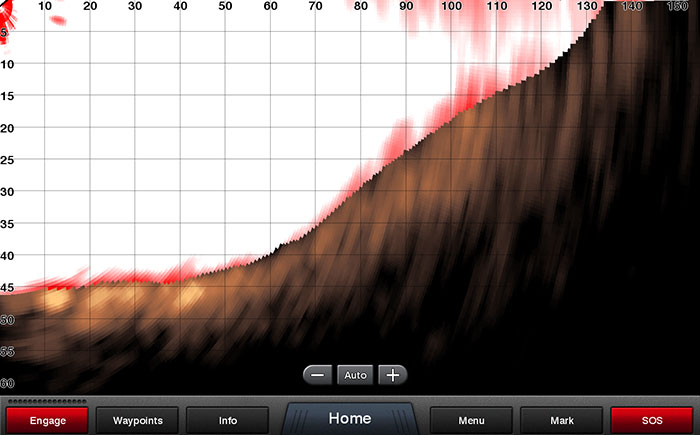

FrontVü aids collision avoidance by showing obstructions with a 300-foot forward range.¹

LiveVü Forward shows fish and divers swimming in real time with a 100-foot forward range.

¹The ability to effectively avoid forward collisions with FrontVü sonar decreases as speed rises above 8 knots.

관련 홈페이지

Weight:
- Transducer only: 0.75 lb (0.34 kg)
- Transducer and cable: 2.45 lb (1.11 kg)
- Transom mounting hardware: 1.53 lb (0.69 kg)
- Deflection shield: 1.59 lb (0.72 kg)
Temperature Range:
- Operating: 32°F to 104°F (0°C to 40°C)
- Non-operating: -40°F to 158°F (-40°C to 70°C)
Mounting options: Transom
Power consumption: <0.6 A @ 12 Vdc
Voltage range: 10-35 Vdc
Frequencies supported: 417 kHz
Maximum range: 300 ft

LiveVü Forward
- Beam shape: 45° x 90°
FrontVü
- Beam shape:

Panoptix PS21-TM Forward Transom Mount Transducer
Transom mounting hardware
