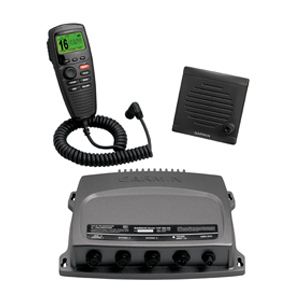

VHF 300 AIS

단종

Part Number 010-00757-11

GBS 온라인샵

제품 특성
제품 사양
내용물
업데이트
액세서리
호환 기기

The VHF 300 AIS combines radio communication and 1 or 25 watts of transmit power with multi-station support to give you the flexibility and convenience you need to safely navigate and communicate on the open water.

Communicate with Confidence

The VHF 300 AIS is equipped with a 2-way 30 W hailer system for communication with other boats or deckhands. In addition, the VHF 300 AIS has a patent-pending voicemail feature that lets you pre-record a 15 second message and deliver the message to any Digital Selective Calling radio. You’ll also have the ability to replay the last 90 seconds of any incoming voice transmission at the touch of a button.

Identify Your Surroundings

With the VHF 300 AIS, you’ll get detailed data on your surroundings, regardless of visibility. You’ll have ship identification information, position, course and speed for vessels equipped with AIS within range. The VHF 300 AIS also receives both Class A and Class B signals at the same time to ensure no critical information is lost.

Take Full Control

The VHF 300 AIS is operated via the included GHS 10 handset microphone that allows full radio control from a remote location. The GHS 10 features a crisp 2 in (5.08 cm) LCD display, dedicated rotary key for frequent tasks, and 3 soft buttons for dynamic controls. The VHF 300 AIS uses the supplied 4 in (10.16 cm) active speaker with volume knob, the built-in speaker on the GHS 10 or an optional third-party passive speaker. Or, add up to 3 optional GHS 20/GHS 20i wireless handsets, allowing you the freedom to move about your vessel while staying in touch.¹

Save Space

With a space-saving black box configuration, you’ll be able to mount the VHF 300 AIS wherever you choose. And with multi-station support, you can add the wired GHS 10 handset microphones throughout your vessel without having to add existing receivers. The system also can be used as an on-boat intercom if you have multiple stations aboard your vessel.

Stay Safe on the Seas

The VHF 300 AIS provides full NOAA weather alerts and Class D Digital Selective Calling (DSC) capability via NMEA 0183 or NMEA 2000 connectivity. Should trouble arise, DSC provides distress calls with the push of a button. And if your boat already is interfaced with a compatible GPS chartplotter, you’ll get mayday signaling and a digital broadcast of your boat’s position. The VHF 300 AIS also features Position Tracking, which allows a mariner to locate and keep tabs on up to three other boats in the area.

¹Range of the GHS 20/GHS 20i wireless handset varies depending on installation, boat type and environment.

관련 홈페이지

Unit Dimensions, WxHxD	9.75 x 7.09 x 2.5" (24.8 x 18 x 16.4 cm)
Waterproof	(IPX7)
Temperature Range	from 14ºF to 122ºF (from -10ºC to 50ºC)
Compass-safe Distance	20 in. (500 mm)
Digital Selective Calling	Class D
Frequency Bands	All USA, Canadian, and international marine channels; 10 NOAA weather channels
Operating Voltage	from 10.8 to 15.6 Vdc (12 Vdc boat battery)
Current Drain	Transmit High Power: 6 A max; Transmit Low Power: 2 A max
Transmitter Power (at 13.6 Vdc)	High Power: 25 W (23-25 W); Low Power: 1 W (.7-1 W)
Full-function Handset	Impedance: 4 Ω; Input Power: 4 W
External Speaker	Output Power: 4 W (4 Ω/max)
Hailer Output Power	30W max
Hailer Horn Impedance	Hailer Output Power: 4 Ω

VHF 300 AIS
GHS 10
Active speaker
Power cable
Deck cable (10 m/32.81 ft)
Mic hanger
Mounting hardware
Documentation
