STRIKER Vivid 7sv

Part Number 010-02553-03

GBS 온라인샵

제품 특성
제품 사양
내용물
업데이트
액세서리

THE CHOICE IS YOURS

See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 7sv fishfinder with transducer.

The sonar color you pick says a lot about your fishing style. Good thing there are 7 new vivid options.

What a view. Use the included transducer to get CHIRP traditional, ClearVü and SideVü sonars.

Never lose a hot spot again. Use waypoint marking to find your way back.

What’s under the water’s surface looks pretty good as 1” contours, just saying.

A new way to see what’s under the water.

CLEAR, COLORFUL SONAR

Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 7” fishfinder.

SUPPORTS SONAR

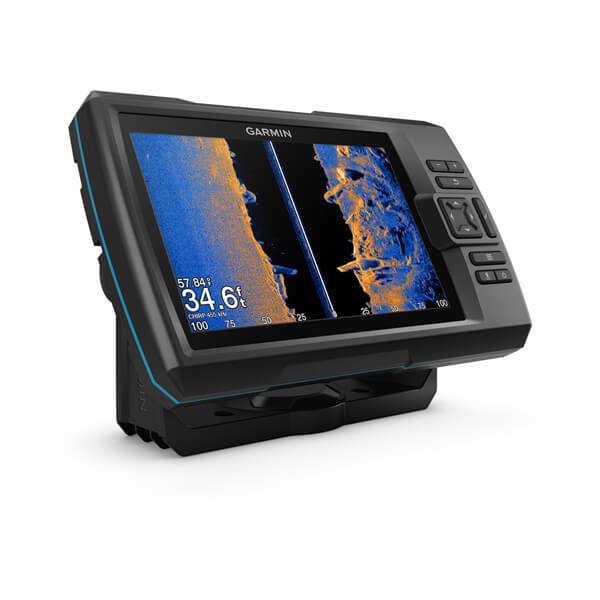

This fishfinder supports 3 types of sonar: Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars with a compatible transducer (sold separately).

WAYPOINT MARKING

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

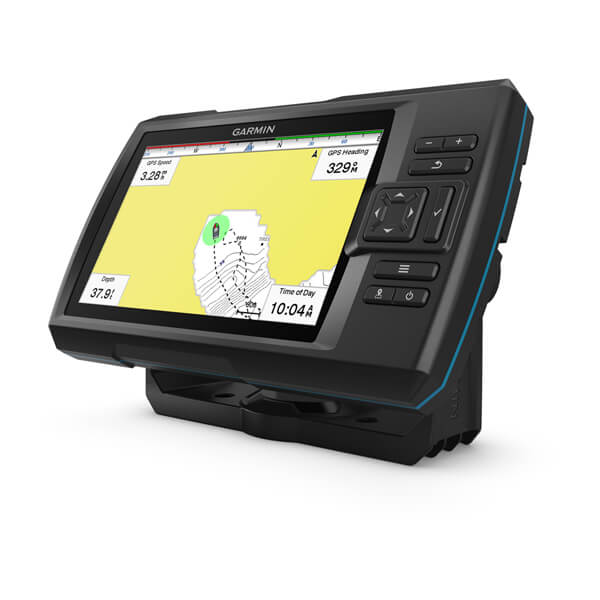

HIGH-SENSITIVITY GPS

Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

QUICKDRAW CONTOURS

Nobody knows the waters you fish better than you. With the STRIKER Vivid 7sv fishfinder, you can store up to 2 million acres of maps with 1’ contours.

INCLUDED HARDWARE

The STRIKER Vivid 7sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

관련 홈페이지

지도 구매

General
PHYSICAL DIMENSIONS	9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8 cm)
DISPLAY RESOLUTION	800 x 480 pixels
DISPLAY TYPE	WVGA color
WEIGHT	1.7 lbs (0.8 kg)
WATER RATING	IPX7
TRANSMIT POWER	500 W (RMS)

Sonar Features & Specifications
DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE
FREQUENCIES SUPPORTED	Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü and SideVü 260/455/800 kHz
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
WATER TEMPERATURE LOG AND GRAPH

Fishfinder Features

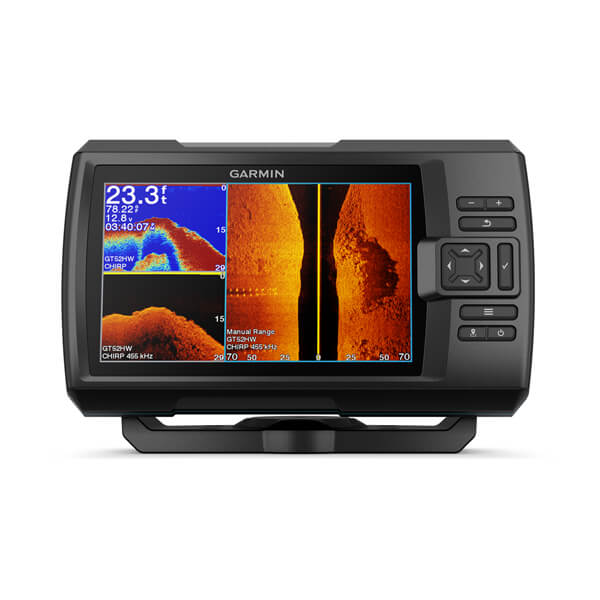

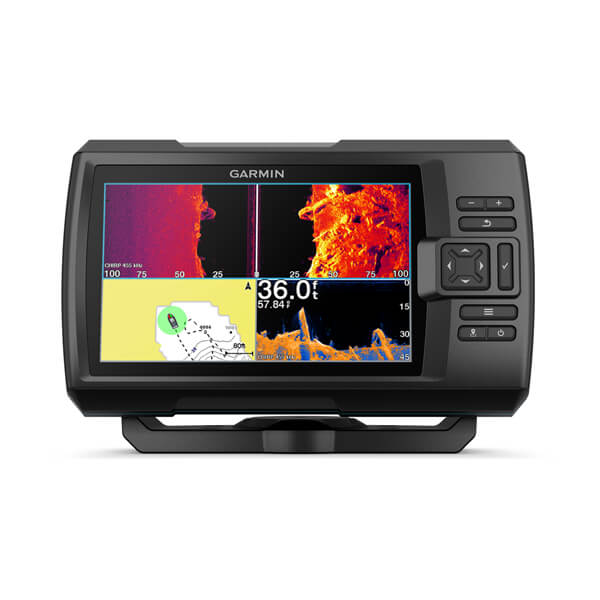

SPLIT-SCREEN ZOOM
ULTRASCROLL® (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS)
FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS)
AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER, MAXIMIZES TARGETS)
ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS)
A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM)
WATER TEMPERATURE SENSOR INCLUDED

Additional

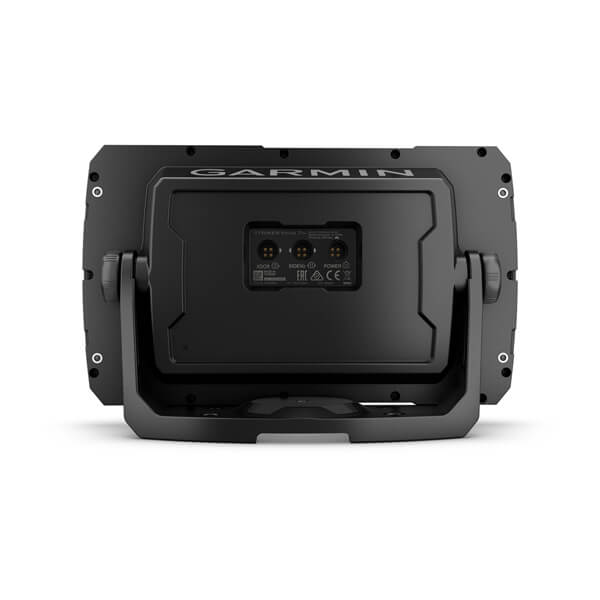

ADDITIONAL	One 4-pin transducer port One 4-pin SideVü transducer port Quickdraw Contours Integrated GPS Mark Waypoints Course over Ground (COG) Current draw @ 12V: 0.67A

no data.
